Elling E6 Archimedes

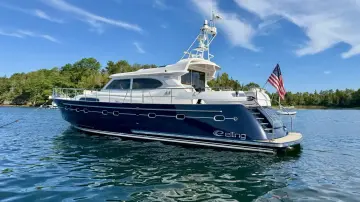

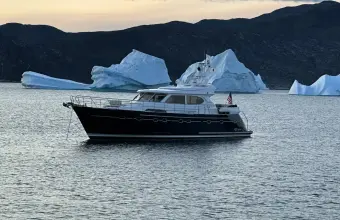

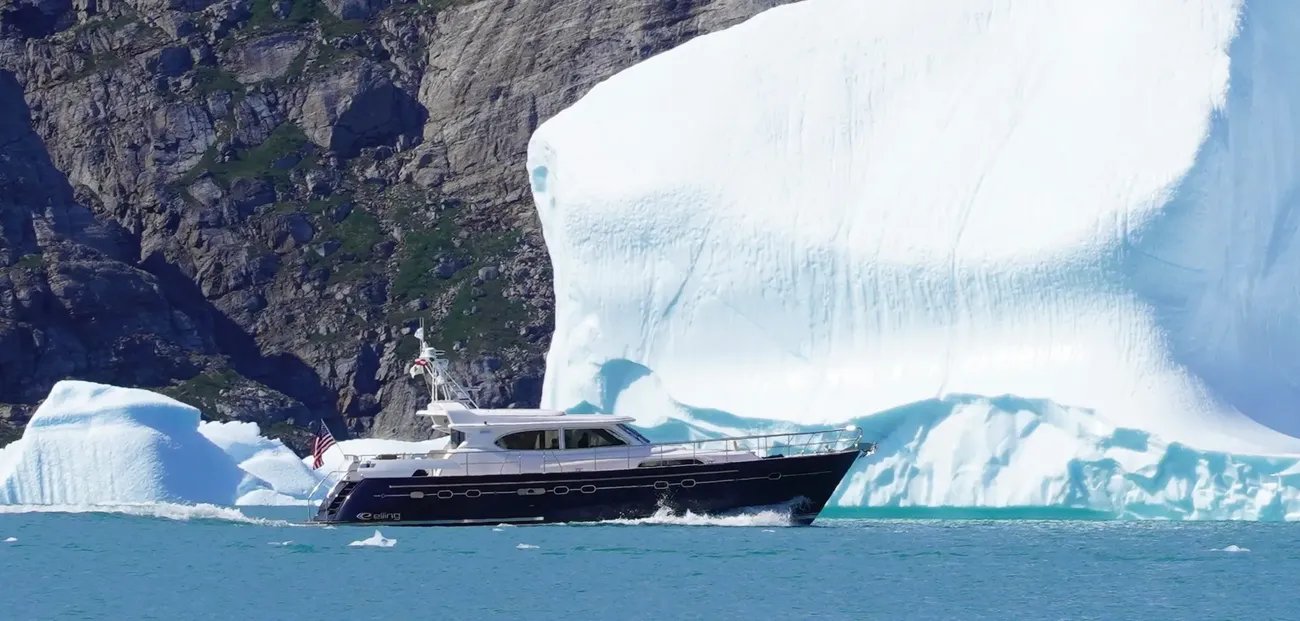

Initial photos may look like stock photos, but they are of Archimedes during her Atlantic Crossing

With a Category CE A rating, numerous redundant systems, a self-righting hull, a 2,500 nm range at a 9kt cruise and a 700 nm range at 15kts , and fully set up to bring to the Arctic or South Pacific, Archimedes is the perfect platform for those who want to cross oceans and explore the world in any climate, with limited crew. Many additional options have been added to make the boat a true expedition yacht.

Easily setup for a couple to cruise the world, she offers a 360 degree view from within the pilothouse, and has comfortable seating arrangement for up to 12 on the upper-deck.

Archimedes was commissioned for a customer who had aspirations of taking their motorboat from the Netherlands to Greenland, then to Maine, and they were able to do so as soon as she was completed at Elling Shipbuilding.

Some notable features include

• 3 Separate Staterooms with ensuite heads


• Large Pilothouse with 360 Degree visibility


• Hermetically Sealed Electric Opening Sunroof


• Self-Righting Hull


• Primary Engine (Volvo D13) and Get Home Engine (Volvo D2)


• Separate Fuel Polishing Systems for the Primary and Get Home Engine


• Kevlar Reinforced Hull


• Tender Garage with Williams Tender System 3Williams TurboJet325 Jet Tender


• SeaKeeper 9 Gyroscopic Stabilizer


• Diesel and Electric Heating/Air Conditioning Systems


• Redundant Systems, such as separate Engines, Windlasses, Lithium Batteries and Generator


• Low Cruise - 2500 Nautical Mile Range at 9kt


• High Cruise - 700 Nautical Mile Range at 15kt


• 1320 Gallon Fuel Tank

• CE Category A (Ocean) Certified


• Kevlar Reinforced Fiberglass Hull


• Integrated Steps on Port and Starboard Side of Hull with Access to Boarding Gates


• 9 Opening Portholes on Port Side of Hull


• 7 Opening Portholes on Starboard Side of Hull


• Swim Platform


• Tender Garage (Including a Williams TurboJet 325 Tender)


• Starboard Swim Platform Door for access to 'Get-Home' Volvo Penta D2-70 and Mechanical Space


• Port Swim Platform Door for access to Crew Quarters and Battery/Electrical Systems


• Port and Starboard Stainless Steel Aft Deck Gates


• Port and Starboard (2x) Aft Deck Lewmar Capstan


• Flexiteek Decking


• 10 Stainless Steel Cleats


• 3 Line Lockers on Aft Deck Gunwhale


• Varnished Aft Deck Table


• 4 Directors Chairs for Aft Deck Table


• 11 Solbian (8 SP-44, 3 SP-118) Non-Skid Solar Panels on Pilothouse Roof


• Custom Radar Mast


• Foredeck Sunpad


• Foredeck Sofa


• Large Forepeak Fender Locker


• Anchor Locker


• Hydraulic Bow Windlass (With Foot Pedals)


• Electric Bow Windlass


• Besenzoni Passerelle


• Williams Tender System 3With WilliamsJet Turbojet 325

• Primary Engine - Volvo D13-900 with 1320 Gallon Fuel Tank and Fuel Polishing System)160 Amp Alternator (Up to 3.5kW)


• 'Get Home' Engine - Volvo D2-70hp with Separate 53 Gallon Fuel Tank (and Fuel Polishing System)


• Aquadrive Vibration Reduction Mounts


• Bow Thruster - SidePower Hydraulic


• Stern Thruster - SidePower Hydraulic


• Watermaker - Schenker Smart


• Generator - 8kw Northern Lights


• Remote Vessel Steering - Hydronautica Remote Motor Control (RMC) for Bow and Stern Thrusters, as well as Main Engine


• Gyroscopic Stabilizer - Seakeeper SK9 (240h as of September 15, 2025)


• Vessel Monitoring - C-Zone


• Hydronic Central Heating - Kabola KB45 Ecoline Boiler Heating with 5 Separate Zones (Pilothouse, Salon, Master Stateroom, VIP Stateroom, Guest Stateroom)


• Electric Air Conditioning - Webasto BlueCool V-Series V50M - 50,000BTU


• Inverter - Mastervolt Mass 24/1500


• Charger Inverter - 2x Mastervolt Mass Combi Pro 24/3500-100


• Mastervolt Mass GI 7 Isolation Transformer


• 200psi Air Compressor (For Inflation of Water Toys)


• Lithium Batteries - 3x Mastervolt MLI Ultra 24/5500 24v Lithium Ion Batteries with Battery Management System (BMS)


• Electric Opening Tender Garage


• Williams Tender System 3With Williams TurboJet 325 Tender


• Besenzoni Passerelle

• CZone Vessel Monitoring


• 2x Raymarine Touchscreen MFD/Chartplotters


• Raymarine Autopilot


• Raymarine Open Array Radar


• 3x Raymarine Display Repeaters


• Raymarine SmartController


• Perko Solar-Ray Marine Searchlight


• FLIR M364C Heated, Gimbled Night Vision Camera


• Thales Iridium Satellite Communication (Backup to StarLink)


• Kahlenberg Air Horn

Stepping onto the large Flexiteek swimplatform, you have a large opening hatch to enter the primary mechanical space on the starboard side under the stairs, which houses the generator, air conditioning and heating systems, watermaker, and back-up (Get-Home) Volvo Penta D2-70 engine. Access is incredibly easy and the space is easy to enter completely and work on systems.

Centerline is a large tender garage, capable of fitting a Williams Jet Tender 325 with a large Williams System which retrieves or launches your tender. With 4 opening hatches under the tender space is the Seakeeper 9 Gyroscope, and with no tender in the garage there is plenty of space.

On the Port Side of the aft deck is another set of stairs, where the crew quarters and additional mechanical space exists. Within the Crew Quarters, which has a twin bed but a drop down panel to create a much larger berth, exists the lithium battery and electrical system. The 3 Mastervolt Lithium 24v batteries are under the bunk, and the inverters and chargers are also in this space.

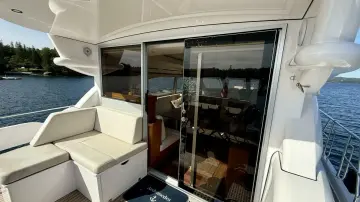

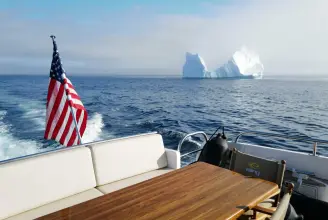

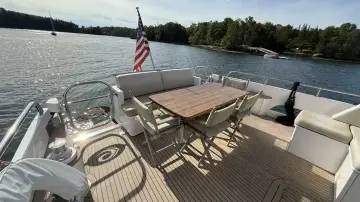

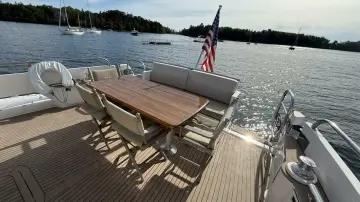

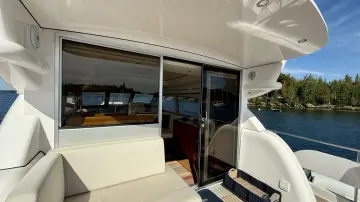

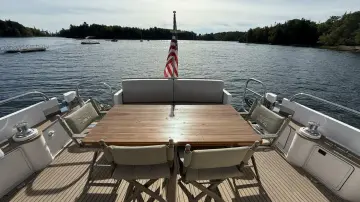

With two large stairways, you have the option of going up to the aft deck on either the port or starboard side, with well positioned steps and handrails. Upon stepping onto the aft deck, there is a large varnished table in the center aft with ample seating, between the directors chairs or the forward facing sofa. You have additional seating against the pilothouse, as well as capstans on the Port and Starboard sides.

Access to the Foredeck is from either the Port or Starboard side walkway from the aft deck, both of which have high railings and ample space. Upon getting to the Foredeck, there is a large sunlounger on the pilothouse, with a couch and comfortable seating facing forward. Just forward of the couch is a large forepeak locker with two separate opening hatches, so it is incredibly easy to fit all lines in fenders in the locker. Ahead of this on the bow, you have two separate windlasses, one hydraulic and one electric, so deploying the anchor is simple regardless of power.

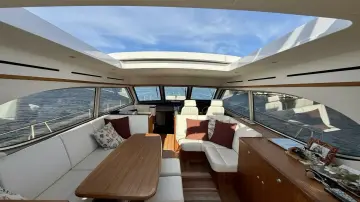

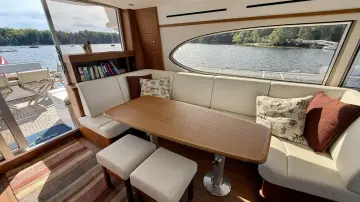

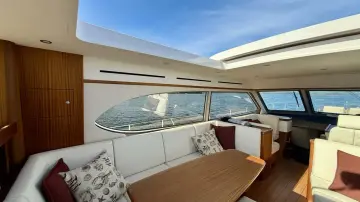

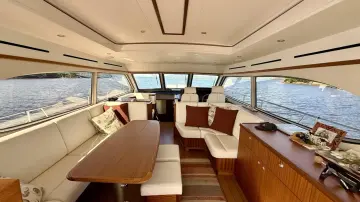

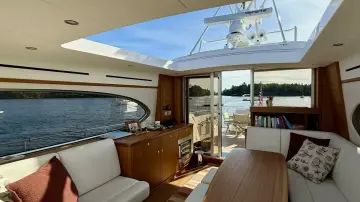

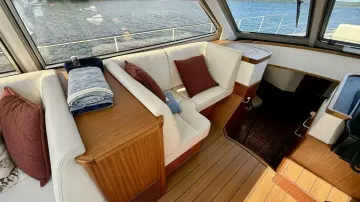

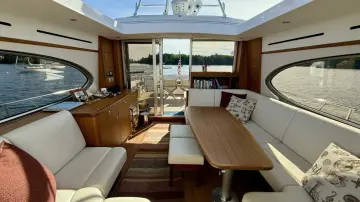

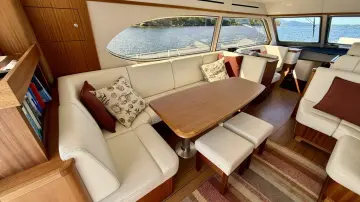

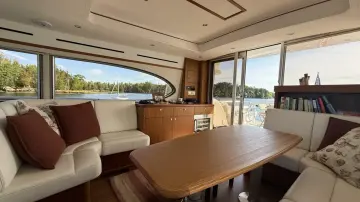

When entering the pilothouse, the first things that you immediately notice is the phenomenal amount of light, and extreme quality of the woodwork. There are full windows all the way around the pilothouse, with the forward center window which can be opened manually, and if you need additional airflow, the hermetically sealed sunroof can be opened electronically, and is oversized and makes it feel as though you are outside. To port, you have a nice dining area with another beautiful table and L-Shaped couch, with a bookshelf and storage just aft of the sofa. On the starboard side, there are 3 drawers with 2 cabinets and a Schreuder&Waterman Wine Cooler underneath. Just forward on the starboard side is another L-Shaped Sofa, so seating around the pilothouse is ample for as many guests as you could want to accommodate.

• Port Side L-Sofa with Dining Table


• Dining Table


• Starboard Side Sofa


• Starboard Side L-Sofa


• Schreuder & Waterman Wine Cooler


• Bookshelves


• Cabinetry

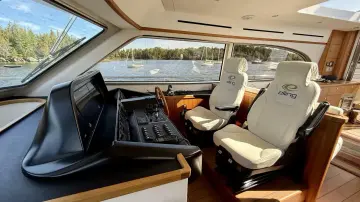

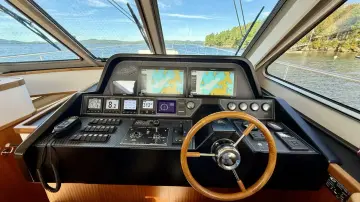

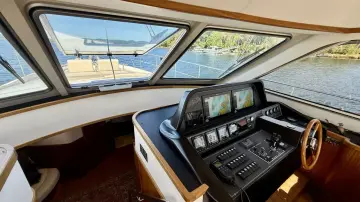

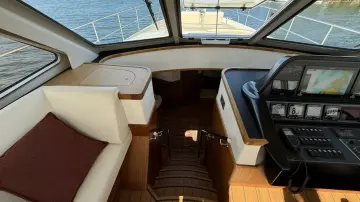

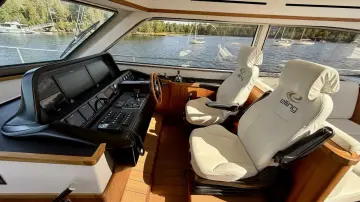

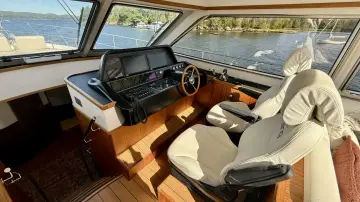

Just ahead of the Dining and Upper Salon is the Helm Station to Starboard. The Captain and Co-Captain seats offer 360 degree visibility, and easy access to all carling switches and electronics from either seat. On the port side, there is additional sofa seating with storage just forward, so passengers also have forward facing seating. This area is perched above the lower salon, so the ability to hear discussions from below is incredibly helpful.

Situated between the Master Stateroom and the Salon is the incredibly well equipped galley. With an abundance of storage inboard and outboard from the pass-through in the galley, provisioning is a breeze. To starboard she has a 4 Burner Miele Induction Cooktop built into the marble countertop. Under the cooktop is the silverware drawer, and under that drawer is the Bosch Convection Microwave Oven, capable of cooking a fine meal, or for use as a microwave if you are on the move. To the left of these items, and well positioned between the sink and the Cooktop/Oven is the Bosch Dishwasher, to make light work of all of the cooking which you can do

• Bosch Dishwasher


• Full Sized Miele Refrigerator and Freezer


• 4 Burner Miele Induction Cooktop


• Bosch Convection Microwave Oven


• Marble Countertop on both sides of Galley


• Overhead Galley Storage


• Under Galley Storage

• Aft Master Stateroom with a Island Berth (with En-Suite Head and Stall Shower)


• Forward VIP Stateroom with Island Berth (with En-Suite Head and Stall Shower)


• Starboard Guest Stateroom with twin Bunks (with En-Suite Head, doubles as dayhead)


• Crew Quarters (with entrance from Swim Platform)


• Pilothouse with Port and Startboard Sofas and Dining Area


• Salon with TV, Seating and Dining Area

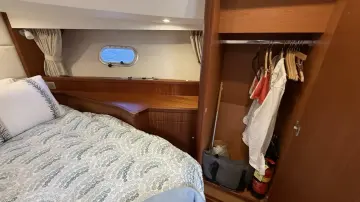

Nestled behind the Galley is the large Master Stateroom. Upon entering, you have a large vanity to the right, with large overhead cabinets above and a makeup station with a mirror below. On the left, you have a large TV facing the bed, with a large hanging closet just past the TV. Storage lines both sides of the cabin, and all the way aft on the right side is the Master En Suite Head, with a large separate stall shower and sink.

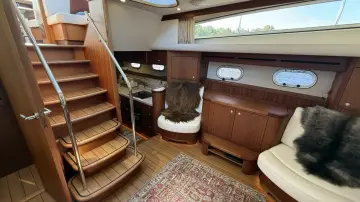

As you go down the staircase from the Pilothouse, you enter the salon. Ample light floods this area, due to the connection to the pilothouse, and to port you have two comfortable seats, with a TV which raises between them. Under the TV is a great storage space, with plenty of space for books, pillows, or blankets. Behind this area heading aft, you would enter the galley and further aft still you would enter the master stateroom.

To Starboard is another dining space, a great space due to the proximity to the galley, as well as the staterooms. Behind the starboard lower salon you would enter a bunk room, with the washer dryer, additional storage, and its own separate head.

Forward of the Salon is the dayhead and VIP Stateroom, which offers ample space and storage with an island berth.
